Acabados
Disponible en 32 colores de la colección Archisonic, en fieltro de poliéster ecológico e ignífugo, divididos en las siguientes 8 familias cromáticas:
– QUIET NEUTRALS
– WARM NATURALS
– LIVING GREENS
– ELEMENTAL BLUES
– SOOTHING PASTELS
– ELEGANT DARKS
– ENERGETIC BRIGHTS
– PRIMARY PLAY
Dimensiones

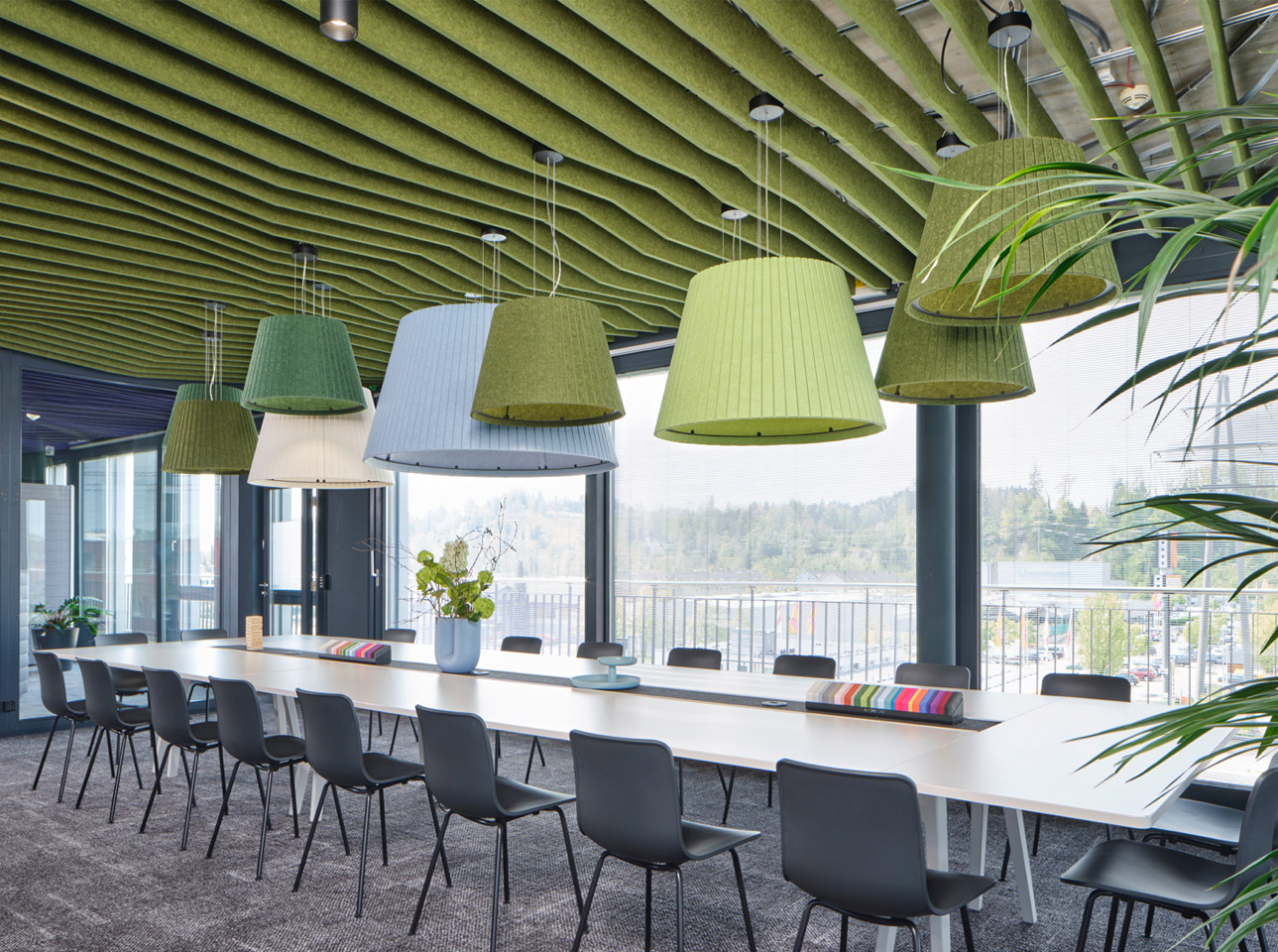

Spark Lighting
– (diámetro) 400mm x H 270mm
– (diámetro) 600mm x H 400mm
– (diámetro) 800mm x H 530mm
– (diámetro) 1200mm x H 650mm
– (diámetro) 1600mm x H 850mm
Focus Lighting
– L 1800mm x W 2400mm, espesor 75 mm (incluido fieltro Archisonic espesor de 24mm),
– L 1800mm x W 1800mm, espesor 75 mm (incluido fieltro Archisonic espesor de 24mm),

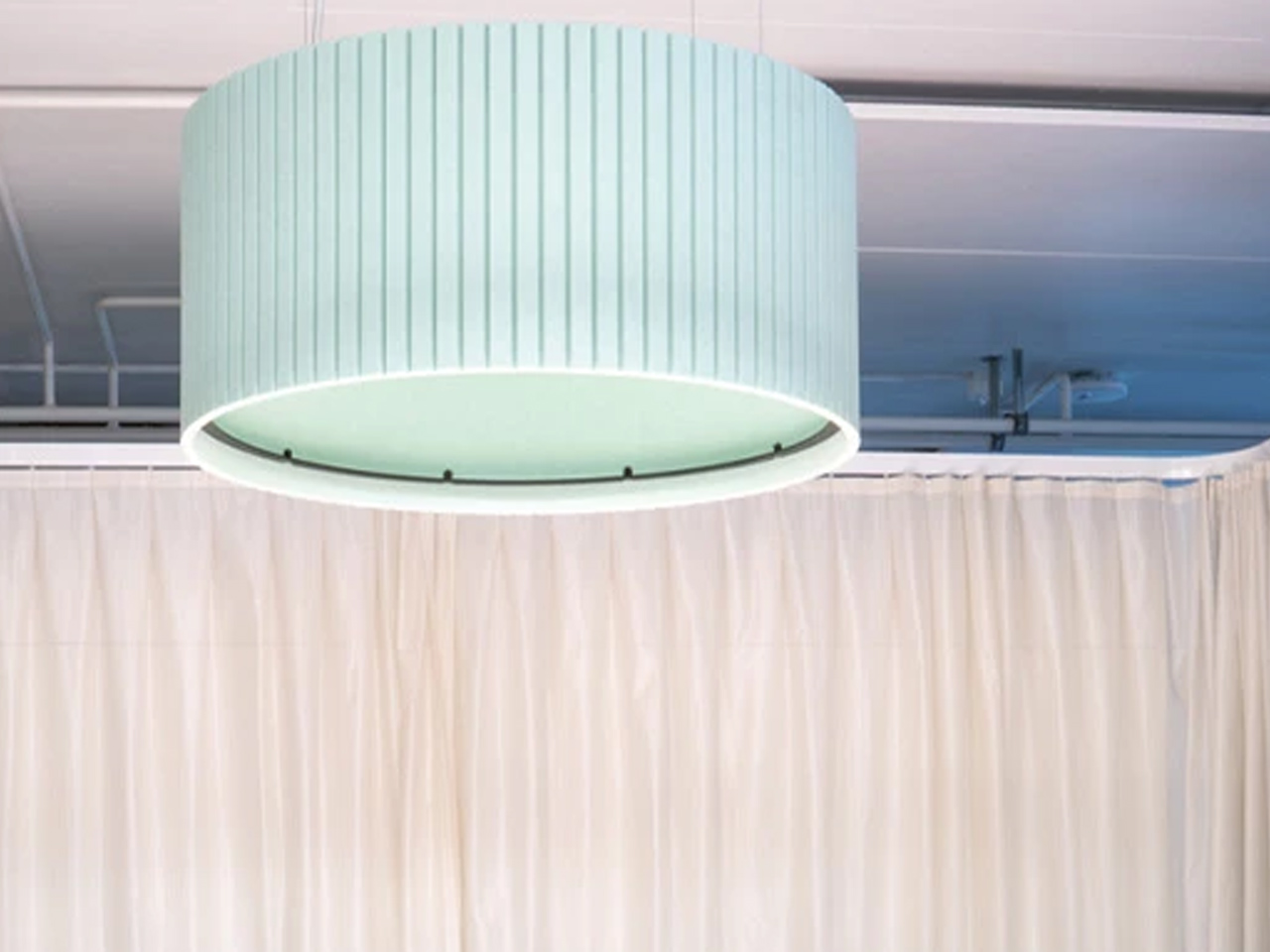

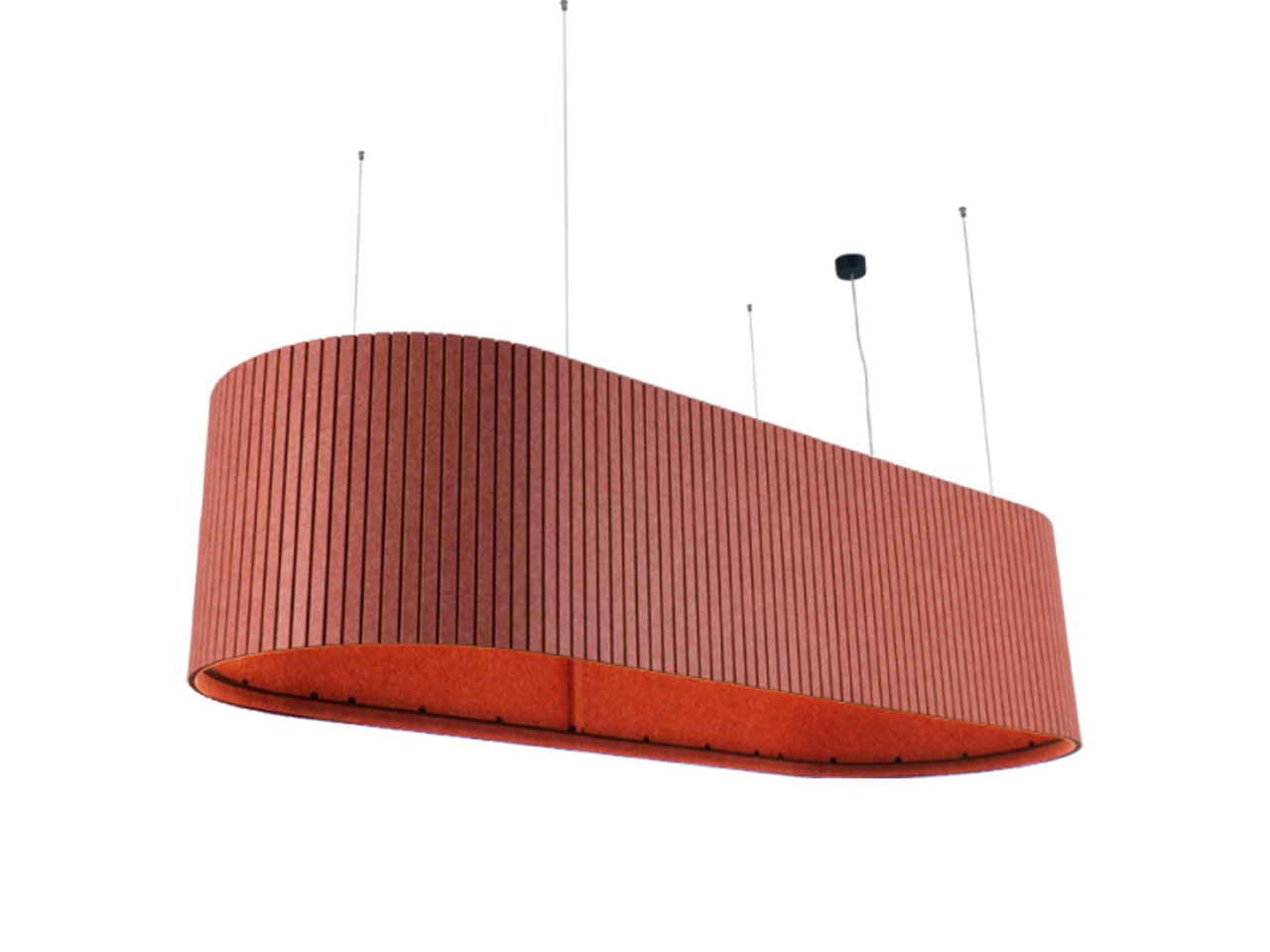

Umbra Lighting
Forma rectangular con esquinas redondeadas
– L 2362mm x W 872mm x H 350mm, espesor filetro Archisonic de 24 mm,
– L 2362mm x W 872mm x H 590mm, espesor fieltro Archisonic de 24 mm,
Forma circular
– 782mm (diámetro) x H 350mm, espesor filetro Archisonic de 24 mm,
– 782mm (diámetro) x H 590mm, espesor filetro Archisonic de 24 mm,
Bysso Lighting
– L 1800mm x W 1800mm x H 90 mm
– L 1800mm x W 2400mm x H 90 mm
– L 1800mm x W 2400mm x H 90 mm
Ora Lighting
– L 1800mm x W 1800mm x H 120 mm
– L 1800mm x W 2400mm x H 120 mm
– L 1800mm x W 2400mm x H 120 mm
Decipio Lighting
– L 1510mm x H 290mm x W 108mm
– L 2070mm x H 290mm x W 108mm

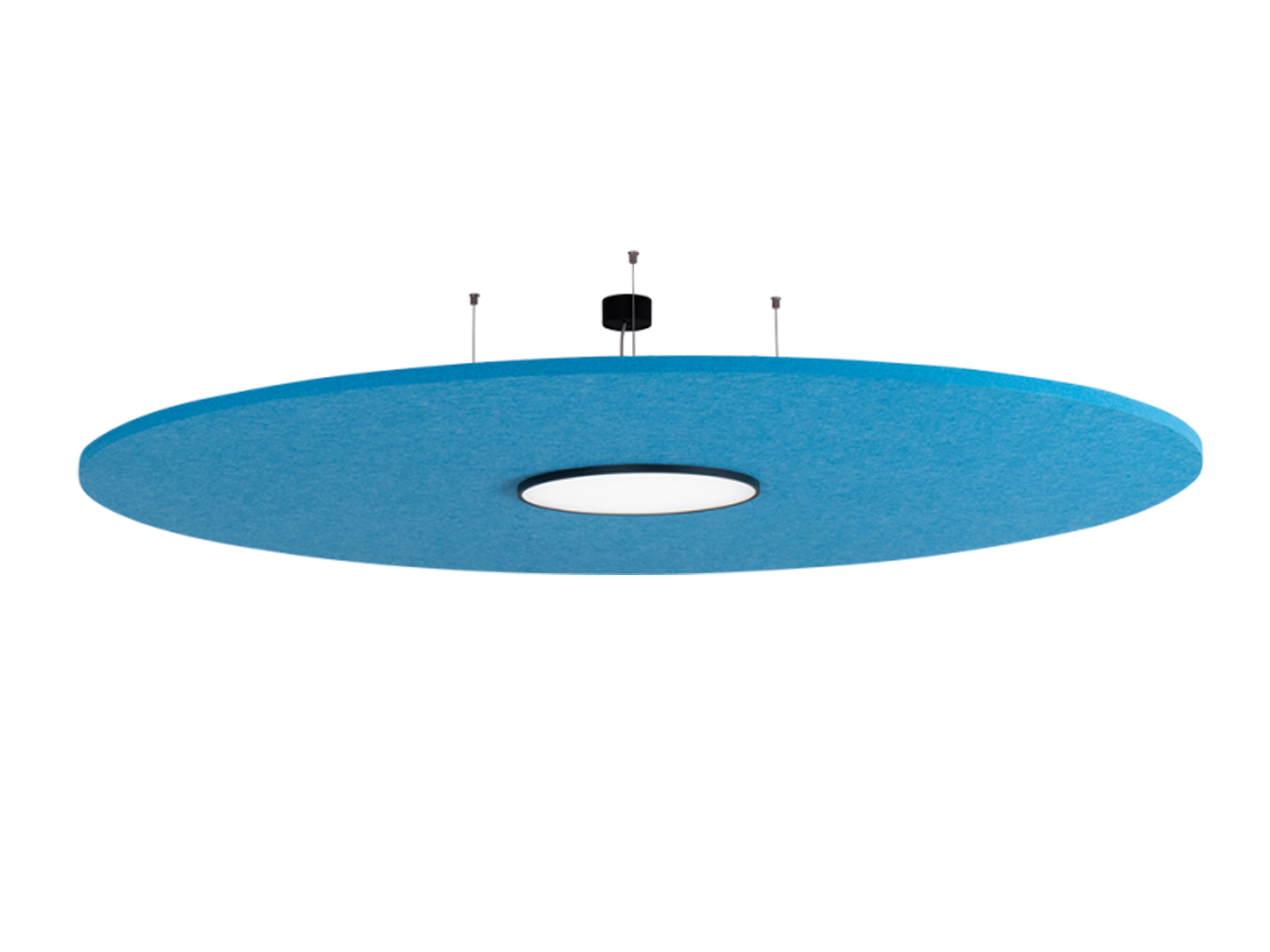

Circ Lighting
– diámetro 1000 mm x H 75 mm, espesor 24 mm
– diámetro 1200 mm x H 75 mm, espesor 24 mm
– diámetro 1800 mm x H 75 mm, espesor 24 mm
– diámetro 1000 mm x H 75 mm, espesor 24 mm, V-cut
– diámetro 1200 mm x H 75 mm, espesor 24 mm, V-cut
– diámetro 1800 mm x H 75 mm, espesor 24 mm, V-cut

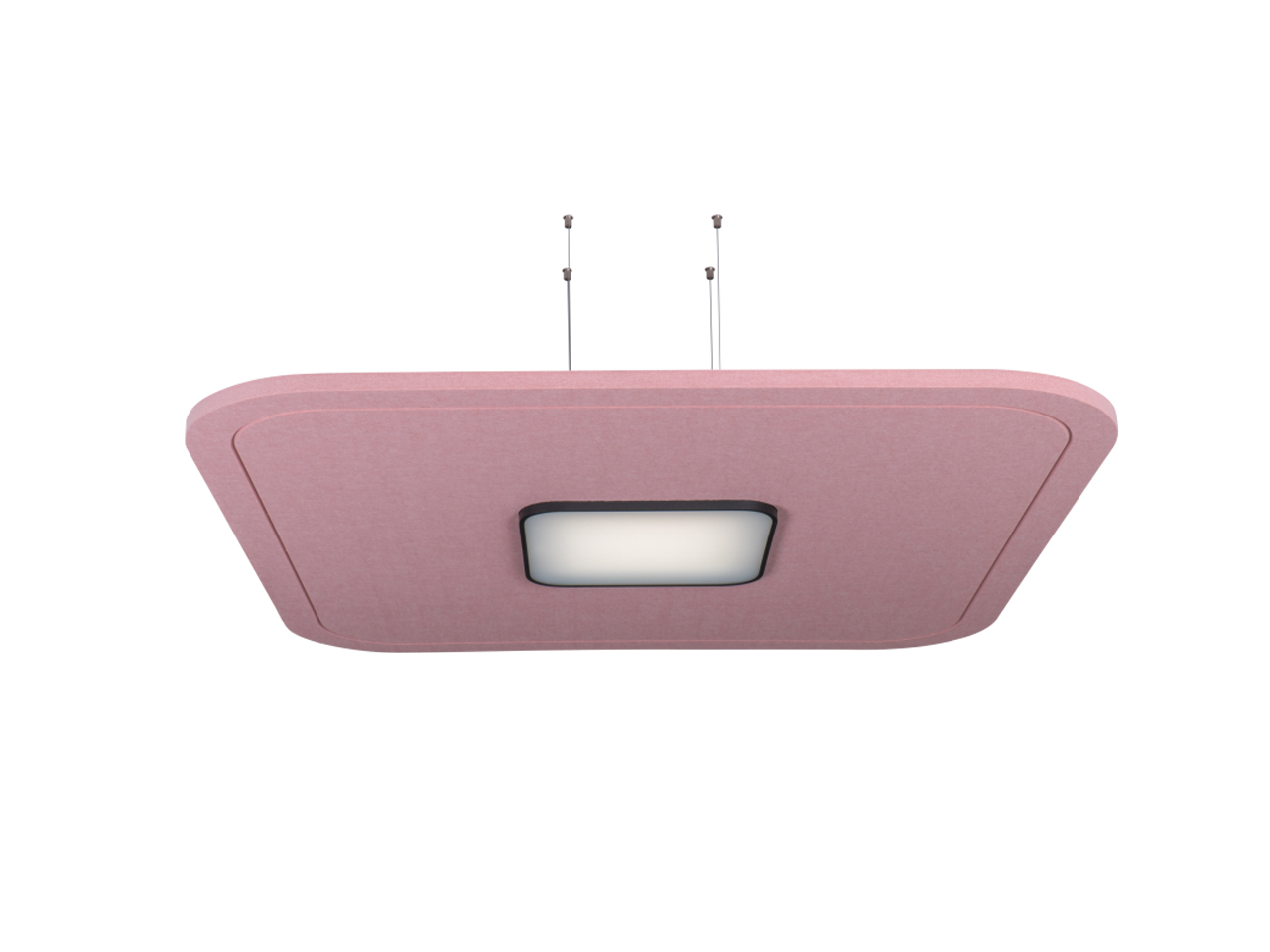

Tetra Lighting
– L 1200mm x W 1200mm x H 100 mm
– L 1200mm x W 1800mm x H 100 mm
– L 1800mm x W 1800mm x H 100 mm
– L 1800mm x W 2400mm x H 100 mm
Características técnicas
Spark Lighting
Voltage: 220 – 240 V
Dimming: not dimmable (DALI on request)
Light distribution: direct
Diffuser: opal
Total power: 29 W
Colour temperature: 4000 K
Luminus flus of the luminaire: 1580 lm
Luminous flux of the light source: 2340 lm
Colour renderingindex: 90
Case colour: black
Ingress protection: IP20
Protection class: I
Life span: > 50,000 h
Colour consistency: SDCM3
Focus Lighting
– 3800 lm, 4000K,
UGR<16, DALI
– 1900 lm, 4000K,
UGR<16, DALI
Umbra Lighting
– 5700lm, 4000K
UGR<16, DALI;
– 5700lm, 4000K
UGR<16, DALI
– 1400lm, 4000K
UGR<16, DALI;
– 1400lm, 4000K
UGR<16, DALI
Bysso Lighting
– Voltage: 220 – 240 V
Dimming: not dimmable (DALI on request)
Light distribution: direct
Diffuser: microprism
Total power: 31 W
Colour temperature: 4000 K / 2700 K / 3000 K / Dali on request
Luminus flus of the luminaire: 3061 lm
Luminous flux of the light source: 4488 lm
Colour renderingindex: 90
Case colour: black
Ingress protection: IP20
Protection class: I
Life span: > 50,000 h
Colour consistency: SDCM3
– Voltage: 220 – 240 V
Dimming: not dimmable (DALI on request)
Light distribution: direct
Diffuser: microprism
Total power: 31 W
Colour temperature: 4000 K / 2700 K / 3000 K / Dali on request
Luminus flus of the luminaire: 3061 lm
Luminous flux of the light source: 4488 lm
Colour renderingindex: 90
Case colour: black
Ingress protection: IP20
Protection class: I
Life span: > 50,000 h
Colour consistency: SDCM3
– Voltage: 220 – 240 V
Dimming: not dimmable (DALI on request)
Light distribution: direct
Diffuser: microprism
Total power: 41 W
Colour temperature: 4000 K / 2700 K / 3000 K / Dali on request
Luminus flus of the luminaire: 3980 lm
Luminous flux of the light source: 5835 lm
Colour renderingindex: 90
Case colour: black
Ingress protection: IP20
Protection class: I
Life span: > 50,000 h
Colour consistency: SDCM3
Ora Lighting
– Voltage: 48V DC
– Control gear needed: Yes
– Control gear included: Yes
– Weight: 20,7 kg (1) / 28 kg (2)
– Light distribution: Direct
– Lamp Product: SMOOTHLINE
– Lamp Typ: LED
– Total Power: 32 W
– Luminous Flux of Light Source: 4150lm (1)/ 4980 lm (2)
– Usable luminous flux: 2700lm (1)/ 3200 lm (2)
– Colour rendering index (CRI): 90
– Colour temperature (CCT): 4000 K
– Material composition: 100% PET (min. 60% post-consumer)
– Fire test: DIN EN 13501-1 B-s1, d0 ASTM E-84 Class A
– Voc-Emission: CDPH 01350 Pass ISO 16000 (CDPH/EHLB/Standard Methode V1.2.) EN 16516
– Colour fastness: ISO 105-B02, A1 Grade 6
– Material reutilisation ARCHISONIC® 24 mm
– Sound absorption: DIN ISO 11654
Environmental
– Cradle to Cradle Certified™ Product qualifies for LEED v4 specifications on VOC emissions in LEED EQ credit (Low-emitting products)
– Microbial resistance: ASTM G21-15 Growth rating: 0 (no growth) ARCHISONIC® does not provide a breeding ground for mold and mildew.
– Supported by: Climate KIC
Decipio Lighting
– 4700LM, 4000 Kelvin
UGR < 19, DALI
– 6100LM, 4000 Kelvin
UGR < 19, DALI
– Material composition: 100% PET (min.60% post-consumer)
– Fire Test: DIN EN 13501-1 B-s1, d0
ASTM E-84 Class A
– Voc Emission: CDPH 01350 Pass
ISO 16000 (CDPH/EHLB/Standard Method V1.2.)
EN 16516
– Colour fastness: EN ISO 105-B02, A1 Grade 6
Circ Lighting
Voltage: 220 – 240 V
Dimming: not dimmable (DALI on request)
Light distribution: direct
Diffuser: opal (Microprism on request)
Total power: 18 W
Colour temperature: 4000 K (3000K on request)
Luminus flus of the luminaire: 2415 lm
Luminous flux of the light source: 2910 lm
Colour renderingindex: 90
Case colour: black
Ingress protection: IP20
Protection class: I
Life span: > 50,000 h
Colour consistency: SDCM3
Tetra Lighting
Voltage: 220 – 240 V
Dimming: not dimmable (DALI on request)
Light distribution: direct
Diffuser: opal (Microprism on request)
Total power: 31 W
Colour temperature: 4000 K (3000K on request)
Luminus flus of the luminaire: 3010 lm
Luminous flux of the light source: 4635 lm
Colour renderingindex: 90
Case colour: black
Ingress protection: IP20
Protection class: I
Life span: > 50,000 h
Colour consistency: SDCM3
