Lunar sound-absorbing panel

The Lunar sound absorbing panel by Acoustic Lab is a design panel conceived to improve acoustic comfort in the office, restaurant and public spaces in general, which require specific intervention to reduce reverberation.

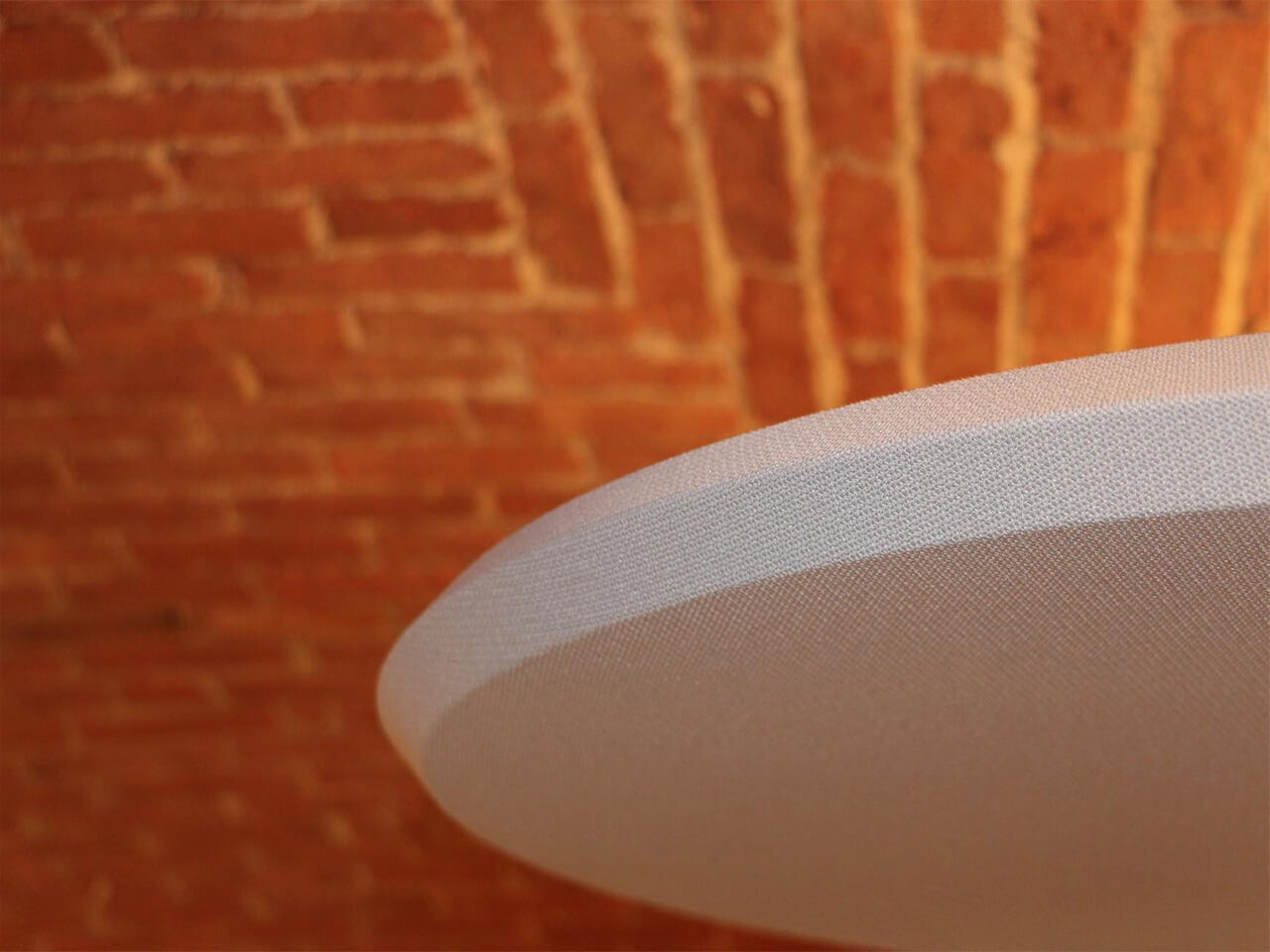

The Lunar sound absorbing panel is characterized by its circular shape and the outer edge in the V or straight shape, a minimalist design that blends harmoniously into any environment.

During the production process the internal polyester fiber is thermo-smoothed, in order to obtain a slightly harder surface part.

From the acoustic point of view, the sound-absorbing panel will have a better performance, especially at medium-low frequencies, as a second effect is added to the classic principle of absorption by porosity of polyester, known as the “vibrating plate” principle.

The Lunar sound absorbing panel in round format is proposed in various diameters, and is covered with different categories of fireproof bi-elastic stretch polyester or wool fabrics.

The Lunar sound absorbing panel is a Made in Italy product.

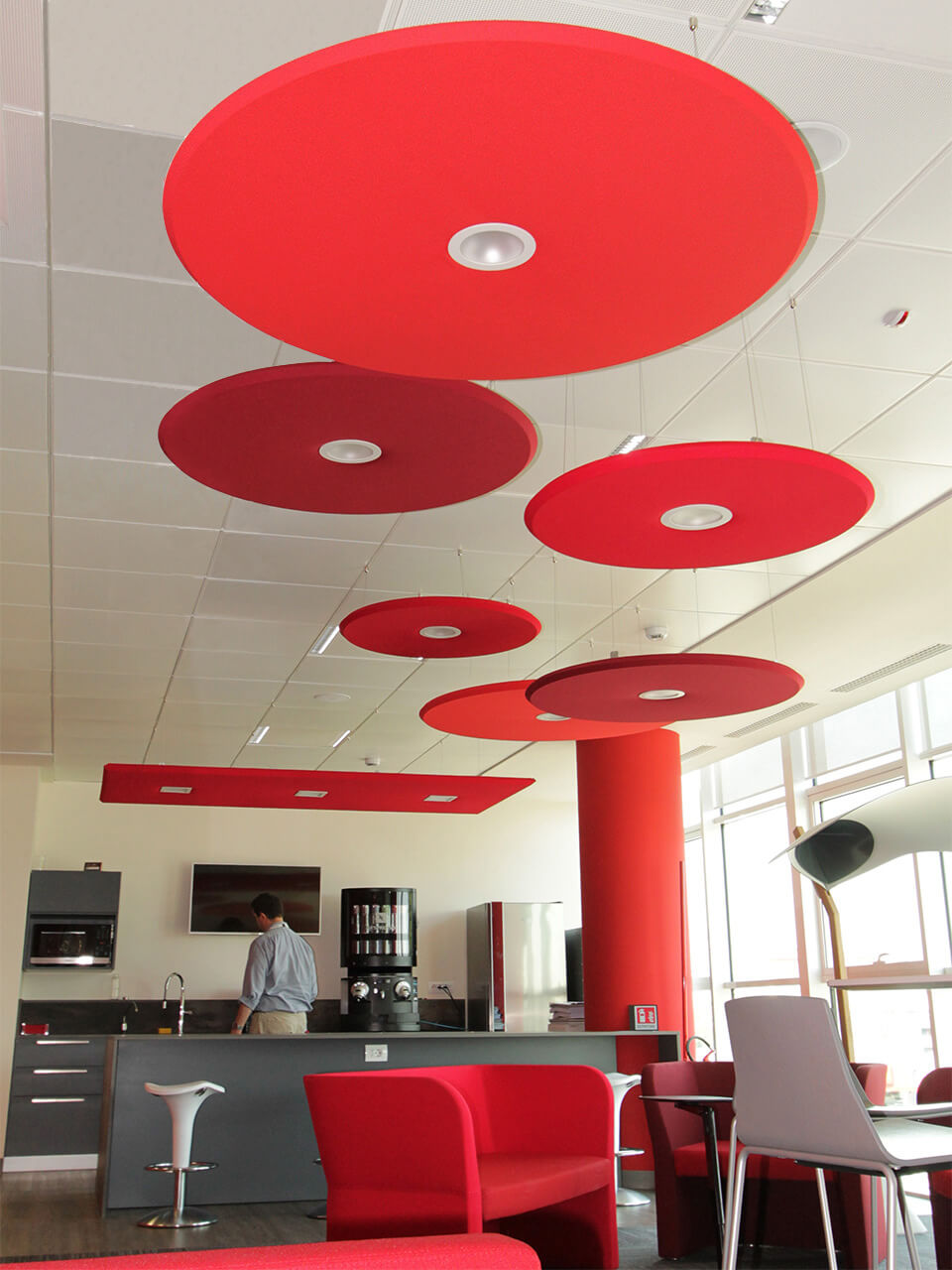

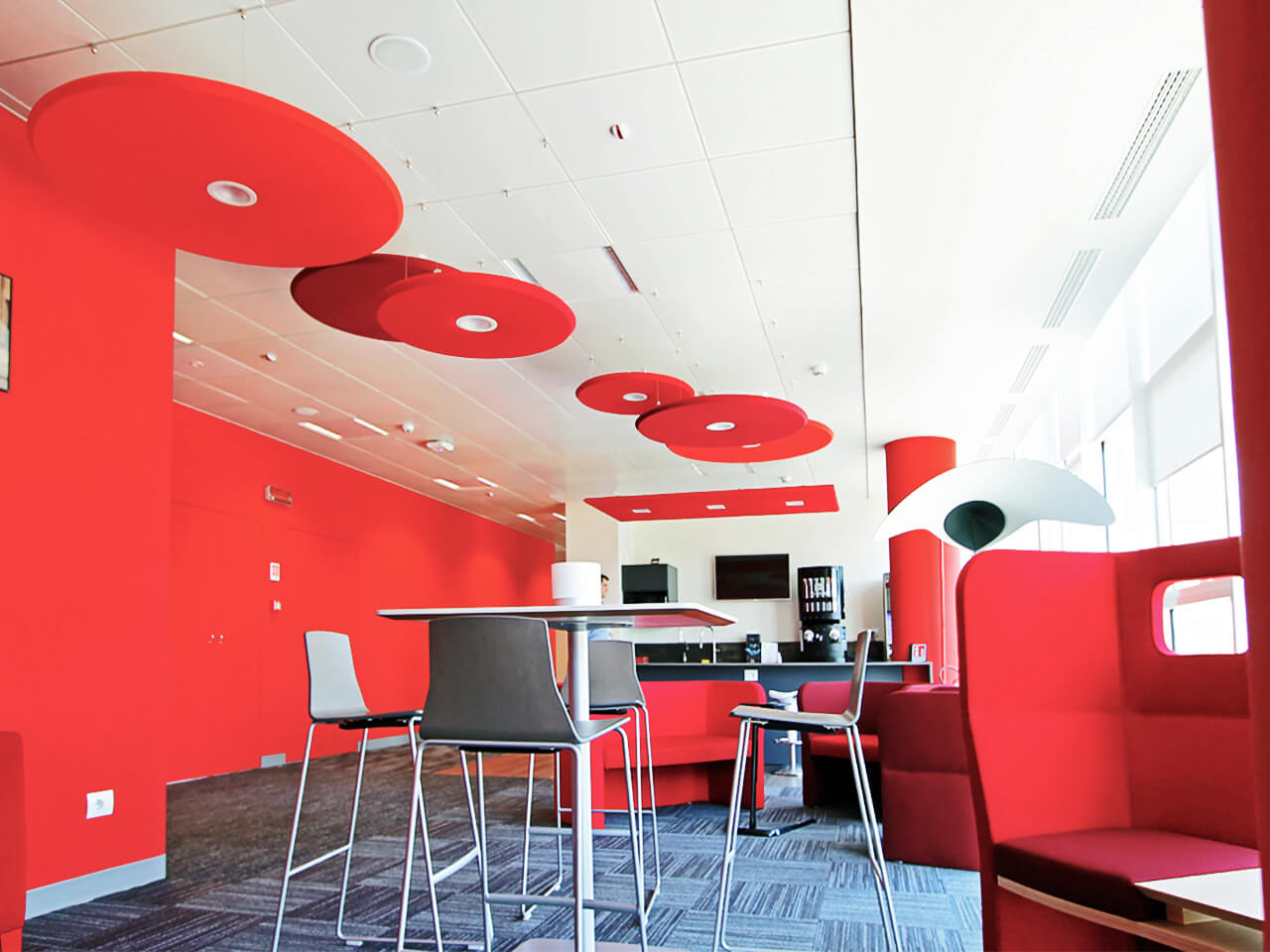

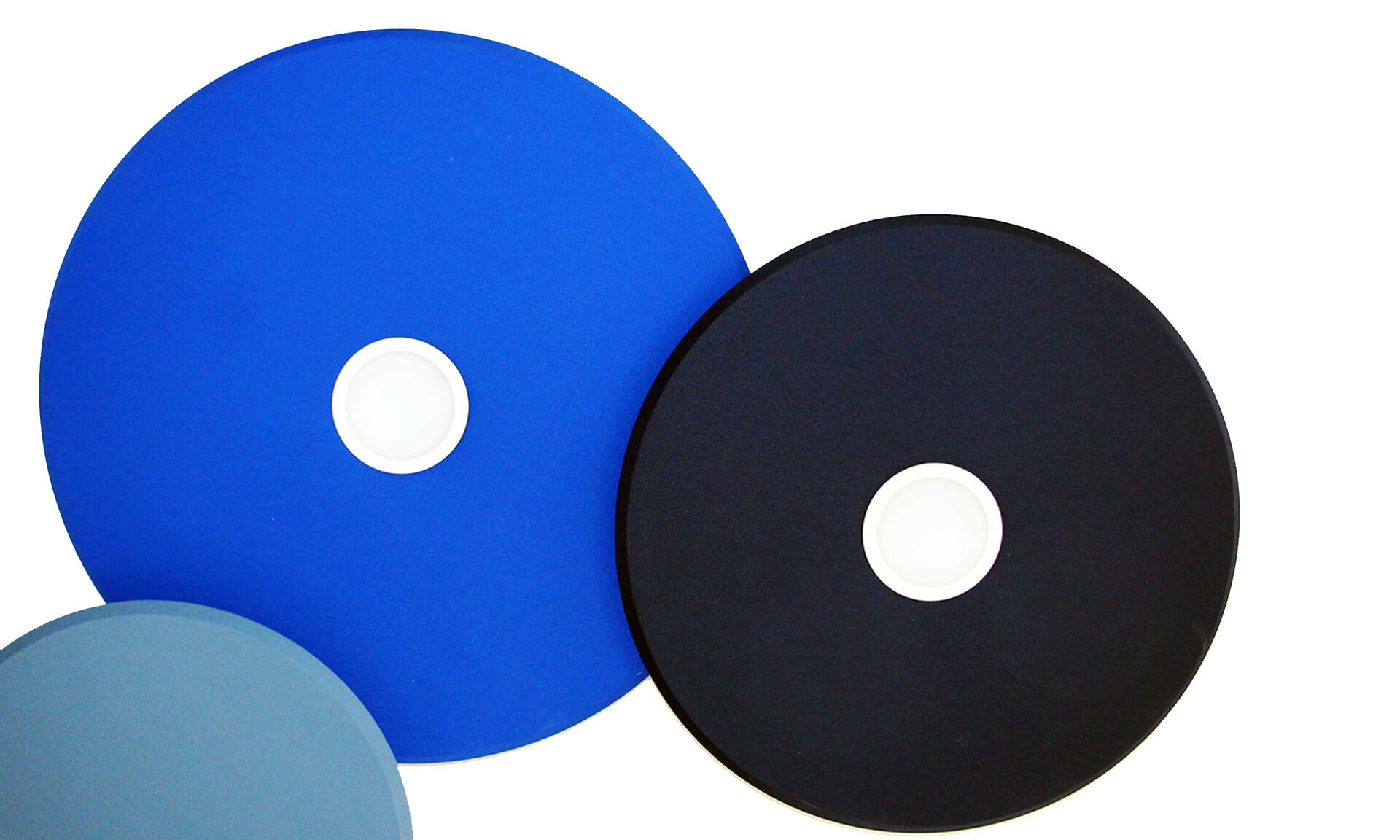

Lunar acoustic panels can be equipped with round or square LED lamps, for more information and photos click here.

It is also possible to customize the panels with HD digital printing of images in high definition, for more information and photos click here.

For rectangular or square shaped panels, consult the GoodVibes acoustic panels: more information and photos here.

Description

Internal structure in aluminum.
Interior in polyester fiber of 50 kg / m³ with variable density (fireproof class Bs2-d0), developed to increase absorption at medium-low frequencies.
Standard panel thickness of 40 mm.
Lunar sound absorbing panels are in class “A” of sound absorption according to the reference standards: ISO 354: 2003 and ISO 11654: 1998.

Finishes

Coverings in different categories of stretch two-way stretch fireproof fabrics, available in a wide variety of colors and patterns:
Trevira CS® fabric, 100% polyester (class 1 – B-s1, d0)
Ecopoliester fabric, recycled polyester (class 1)
Ecopoliester Mélange fabric, recycled polyester (class 1)
75% wool fabric – 25% polyamide (fireproof class 1 IM)

Special sizes

It is possible to create acoustic panels of special sizes and formats, consult us for more information through the contact form.

Technical Characteristics

External coating
Trevira CS® fabric 100% polyester – Fabric 75% wool and 25% polyamide – Ecopolyester fabric, 100% recycled polyester – Ecopolyester Mélange fabric, 100% recycled polyester.

Abrasion resistance:> 50,000 Martindale cycles (± 20%)

Light resistance: EN ISO 105-B02-5

Friction resistance: EN ISO 105-X12 – Wet 4/5 – Sec 5

Flammability: 1 IM UNI 9175 – EN 1021-1: 2006 – EN 1021-2: 2006 – TB 117: 2013 – IMO

Treatments: hydro-oil repellent

Internal polyester fiber certifications
